National Flooring Equipment Gladiator Walk-behind Scraper Heavy Duty 6280HD-COM
Product Description

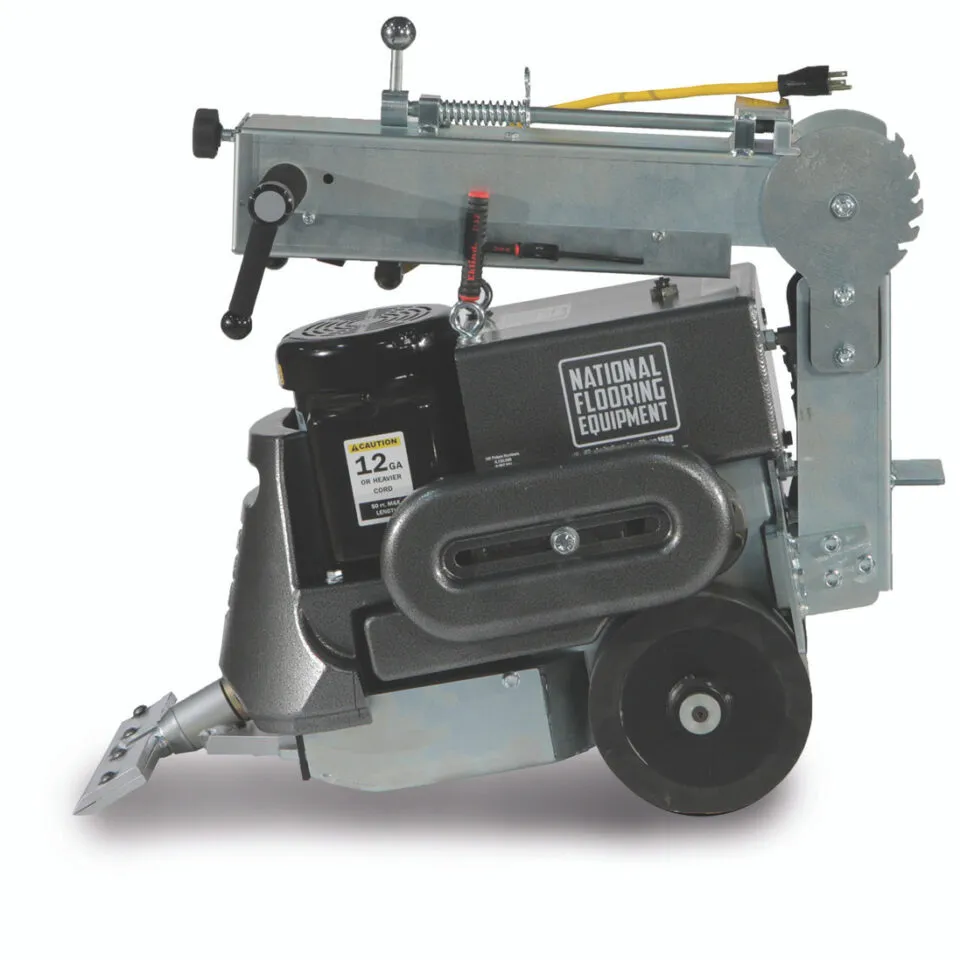

The 6280HD walk-behind scraper removes hard and soft goods. With proper tooling, this machine takes up ceramic tile, wood floors, thin-set, sheet vinyl, linoleum, and more. It’s compact design makes it ideal for use in confined spaces, while the side slide weights add extra head pressure when forward and improved traction when moved over the back wheels.
This powerful scraper’s front end is designed to hold a variety of styles of blades and shanks. The 6280HD walk-behind scraper removes ceramic tiles with National’s patented carbide tipped shanks. Included with the machine are two different angle attachments that properly position the machine for hard or soft goods removal.
The orbital action of the front end is designed to cut through the work as opposed to hammering. This design alleviates wear and tear on the scraper, and extends the life of it.
Tooling & Accessories

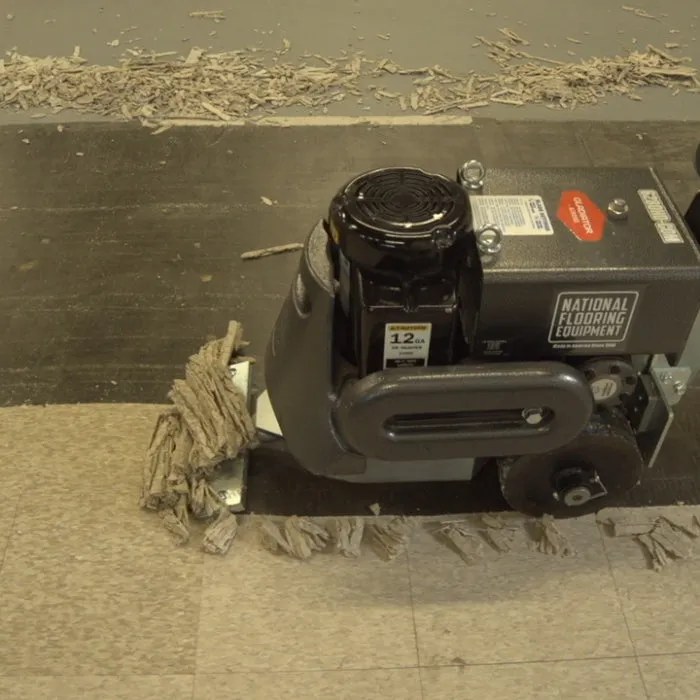

Paired with National’s self-scoring blades, the 6280HD walk-behind scraper cuts through glued down carpeting and VCT with ease. Our self-scoring carpet blades come in a wide variety of lengths and widths to suit any style of removal.
Soft Goods
This walk-behind scraper comes with additional accessories for different types of floor removal. The 7280-2c is a 30-degree angle attachment for soft goods removal. This attachment positions the scraper to take up soft goods with a flat blade, self-scoring blade, or another specialty blade.
Hard Goods
The 402276 is a 9-degree angle attachment. Also included with the machine, this attachment holds a variety of ceramic and wood floor shanks. National offers several sizes of angled shanks with a carbide tip for use on the 6280HD scraper. These work great on ceramic, wood and thick epoxy.
The 9-degree attachment also holds the wood floor shank for this scraper. With an elongated taper on this shank, the tooling can slide under the material fully before lifting it from the ground.
Specifications
| Power Supply | Electric | |
| Width | 17.75″ | 45 cm |
| Max. Height | 46.75″ | 119 cm |
| Height (handle folded) | 30″ | 76 cm |
| Max. Length | 49.5″ | 126 cm |
| Length (handle folded) | 29.5″ | 75 cm |
| Weight | 490 lb | 222.3 kg |
| Removable Weight | 78 lb front | 35.4 kg front |
| 43 lb side | 19.5 kg side | |
| Weight (machine only) | 369 lb | 167.4 kg |
| Speed | up to 30 ft/min | 9.1 m/min |
| RPM | 1725 | 1425 |
| Voltage | 115 | 230 |
| Frequency | 60 Hz | 50 Hz |
| HP | 2 | 1.12 kW |
| Amps (full load) | 15 | 10.5 |
| Noise Emission | 77 dB |
Meets the requirements of the Machine Directive 2006/42/EC and EMC Directive 2004/108/EC. It is CE marked.
Included with the 6280HD-COM
- 6265-BD: 90 degree, 3″ x 8″ Self-scoring, Bevel down
- 6276-BU: 45 degree, 3″ x 10″ Self-scoring, Bevel up
- 7050-200: 3″ x 6″ Premium Blade
- 7280-2C: 30 degree Angle Attachment
- 7280-4: Retainer Cap Assembly
- 7280-6: 6″ Cutting Head
- 7281-1: 1″ Angle Shank w/carbide
- 6280HD-250: Transport Wheel Assembly
- 6280-401B: 6mm T-Handle Wrench
